Why Bulk Trailers Are Short: Density, Payload and the Mass Ceiling

Bulk trailers are short. General freight trailers are long. That is not a styling choice — it is the density problem, solved in steel.

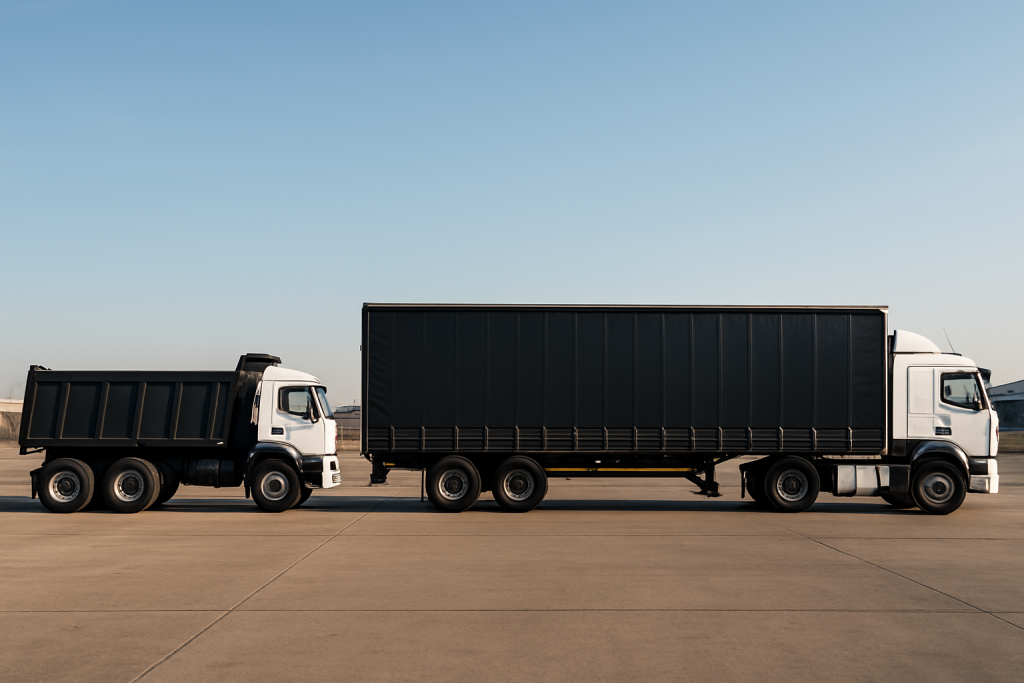

Look at two trailer types side by side in Kweli’s own equipment catalogue and the pattern is impossible to miss:

Type	Typical payload	Common lengths
Tipper / side tipper	28–38 t	6 m · 8 m · 10 m
Tautliner	28–34 t	6,1 m · 12,2 m · 13,6 m

The tipper carries up to 4 tonnes MORE, in a body 3,6 m SHORTER. Put that per metre of trailer:

• Tipper — 38 t over 10 m = 3,8 tonnes per metre
• Tautliner — 34 t over 13,6 m = 2,5 tonnes per metre

Roughly half again as much mass per metre of trailer. Nobody designed that as a feature. It fell out of physics.

Why a bulk trailer is built short

Every trailer is limited two ways at once: by the space inside it, and by the mass the law lets it put on the road. Whichever comes first is your real limit.

Sand, stone, coal, ore and cement are heavy for their bulk. Fill a long bin with any of them and you will pass your legal axle mass long before the bin is full — and past that point every extra metre of trailer is pure cost: more steel to buy, more tare weight to haul, a longer vehicle to manoeuvre, and not one extra tonne of revenue.

So the trailer gets shorter until the two limits arrive at roughly the same time. A 10 m tipper is 10 m because that is about where the bin fills as the axles reach their limit.

General freight has the opposite problem. Palletised boxes are light for their bulk, so a tautliner runs out of deck long before it runs out of mass — and 13,6 m of it earns its keep.

Where the mass ceiling comes from

It is not a single number. Under Regulation 240 an axle with dual wheels may carry 9 000 kg, a tandem group 18 000 kg and a tridem 24 000 kg — and Regulation 241 adds a second limit based on how far apart the axles sit, which on a closely spaced tridem binds before the axle table does.

That is the ceiling a bulk trailer is designed to reach and not exceed. The full picture is in our guide to axle mass limits.

The exception that proves it

One member of the bulk family breaks the pattern, and it breaks it in exactly the way the argument predicts.

Bulk type	Payload	Lengths
Tipper / side tipper	28–38 t	6 · 8 · 10 m
Bulk cement / powder	28–35 t	8 · 10 · 12 m
Bottom dump / belly dump	30–40 t	10 · 12 m
Hopper / grain	30–38 t	10 · 12 · 13,6 m
Walking floor	24–30 t	12,2 · 13,6 m

The walking floor is as long as a tautliner and has the lowest payload of any bulk trailer. Why? Because the catalogue describes it as carrying “bulk and palletised cargo” — it is a hybrid. Built long for the volume side of its work, and paying for that length in payload on the dense side.

Notice too that the grain hopper reaches 13,6 m. Grain is lighter than ore. The family sorts itself by density, and the lengths follow.

What this means when you are choosing

1. Do not buy length you cannot load. If your work is dense material, a longer bin is capital and tare weight you will never convert into revenue.
2. Do not assume a bigger trailer carries more. Across these families it frequently carries less — the walking floor is longer than every tipper and carries up to 8 t less.
3. Know which limit you hit first. If you are always at legal mass with space left, you are mass-limited and length is waste. If you are always full with mass to spare, you are volume-limited and a longer trailer pays.
4. Ask the question per cargo, not per truck. The same trailer is mass-limited on ore and volume-limited on wood chips.

What we are not going to tell you

Most articles on this subject open with a table of material densities — sand at so many tonnes per cubic metre, coal at so many — and use it to compute how much fits in a bin.

We do not hold that data and we are not going to borrow it. Two things we would need, and have checked for:

• Trailer volumes. Our catalogue has fields for internal length, width and height, and they are empty for all 34 types. Of 325 real trucks on the platform, one records an internal length and none records an internal height. We cannot compute a single bin volume from our own data.
• Material densities. We do not record what shippers actually load, only its category, so we hold no measured densities at all.

So this page makes its argument from what we do hold — the payloads and lengths the trailer market has already settled on — and leaves the density arithmetic to the people who measure it. A borrowed number in a table looks exactly like a measured one.

For your own load, weigh it. That figure is the only one that belongs in your planning.

Questions people ask

Why are tipper trailers shorter than tautliners?
Because dense material reaches the legal axle mass before it fills the bin. Past that point extra length adds steel, tare weight and cost without adding payload. Our catalogue records tippers at 6–10 m carrying 28–38 t, against tautliners at up to 13,6 m carrying 28–34 t.

Does a longer trailer always carry more?
No. Among bulk trailers it often carries less. The walking floor is the longest in the family at 12,2–13,6 m and has the lowest payload at 24–30 t, because it is built as a hybrid for bulk and palletised cargo.

What limits a bulk load — space or weight?
Weight, almost always. Sand, stone, coal, ore and cement are heavy for their bulk, so the axle mass limits bind first. Light bulky cargo is the reverse.

How much can a tipper carry in South Africa?
Our catalogue records a typical range of 28–38 tonnes. Your actual limit is set by your axles: 9 000 kg on a dual-wheel axle, 18 000 kg on a tandem, 24 000 kg on a tridem, with a further limit based on axle spacing.

Why does a grain hopper come longer than a tipper?
Grain is lighter than ore or stone, so a grain trailer can use more length before reaching its mass limit. Our catalogue records hoppers at up to 13,6 m and tippers at up to 10 m.

Where the numbers come from

• Payloads and lengths — Kweli’s equipment catalogue, read 16 August 2026.
• Tonnes per metre — our own arithmetic from those figures: 38 ÷ 10 and 34 ÷ 13,6. Shown so you can check it.
• Axle mass limits — TRH 11, reproducing Regulations 240 and 241.
• The empty-field counts — queried directly: internal dimensions null for all 34 trailer types; 1 of 325 real trucks records an internal length, none an internal height.

The payload figures are the catalogue’s typical ranges — a planning guide, not a specification. Your trailer’s plate and your axle loading decide the real number.
